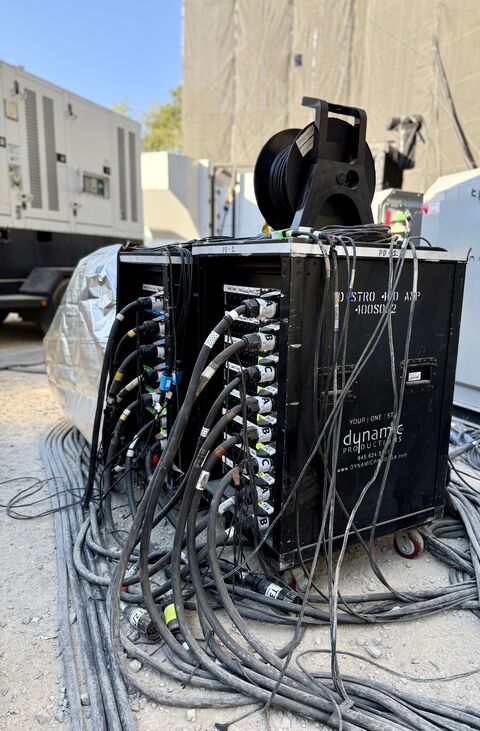

Presidential
- Input: (1) set of (5) 16 Series, 400 Amp, single pole, single wire, 600 VAC, BRBWG color-coded, Cam-type panel mount inlets
- Outputs: (8) LSC19, 20 Amp, 2-Pole, 3-Wire, 125 VAC, 19-Pin receptacles, panel mount and (8) 20 Amp LSC19, 20 Amp, 2-Pole, 3-Wire, 19-pin receptacles, panel mount (parallel); (6) NEMA L21-30, 30 Amp, 4-Pole, 5-Wire, 125 VAC, locking inlet, panel mount; (6) NEMA 5-20, 20 Amp duplex receptacles, panel mount
- Feed Thru: Yes
- Main Breaker: (1) 400 Amp, 120/208Y VAC, triple-pole, adjustable electronic, branch-rated circuit breaker.
- Extruded aluminum frames combined with high density polyethylene (HDPE) enclosure panels create lightweight yet remarkably strong and extremely durable rack enclosures
- Front and back rack doors have "snap-in" latches for ease of access
- All rack hardware is recessed on HDPE panels to protect from breakage and there are no exposed latches when doors are removed
- All 19" rack panels are laser engraved for clear and concise identification
- 100% rated, electronic main and magnetic branch circuit breakers eliminates worry of thermal tripping
- LED power indicators, including discrete six (6) circuit arrays for multipin receptacles, provide clear live circuit identification
- Voltage and Amperage Monitoring.
- Service LED light in front and back.
Viceroy
- Input: (1) set of (5) 16 Series, 400 Amp, single pole, single wire, 600 VAC, BRBWG color-coded, Cam-type panel mount inlets
- Outputs: (4) LSC19 19-Pin, 20 Amp, 2-Pole, 3-Wire, 125 VAC receptacles, panel mount and (4) 20 Amp LSC19 19-pin, 20 Amp, 2-Pole, 3-Wire, receptacles, panel mount (parallel); (3) NEMA L21-30, 30 Amp, 4-Pole, 5-Wire, 125 VAC, locking inlet, panel mount; (6) NEMA 5-20, 20 Amp duplex receptacles, panel mount
- Feed Thru: Yes
- Main Breaker: (1) 200 Amp, 120/208Y VAC, triple-pole, adjustable electronic, branch-rated circuit breaker.
- Extruded aluminum frames combined with high density polyethylene (HDPE) enclosure panels create lightweight yet remarkably strong and extremely durable rack enclosures
- Front and back rack doors have "snap-in" latches for ease of access
- All rack hardware is recessed on HDPE panels to protect from breakage and there are no exposed latches when doors are removed
- All 19" rack panels are laser engraved for clear and concise identification
- 100% rated, electronic main and magnetic branch circuit breakers eliminates worry of thermal tripping
- LED power indicators, including discrete six (6) circuit arrays for multipin receptacles, provide clear live circuit identification
- Voltage and Amperage Monitoring.
- Service LED light in front and back.
Gallery
